Metal Roofing Composite Panel: Lightweight & Insulating
With a core material of rock wool -120K and a thermal conductivity of 0.040, offering quick installation and high precision. Durable, energy-efficient, and customizable to meet your architectural needs.

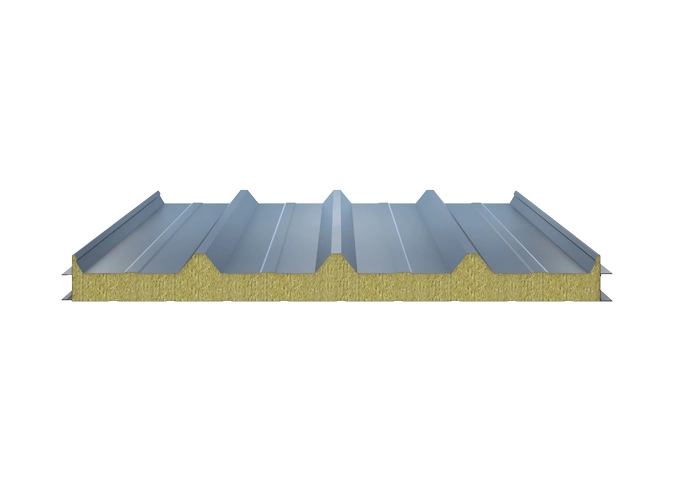

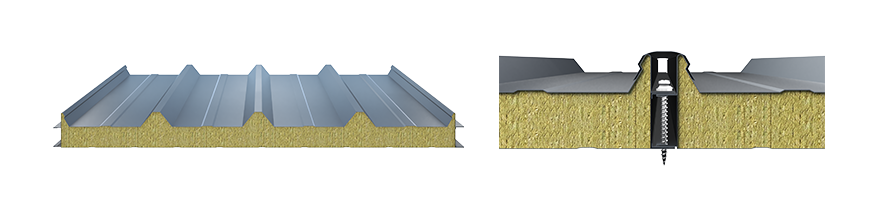

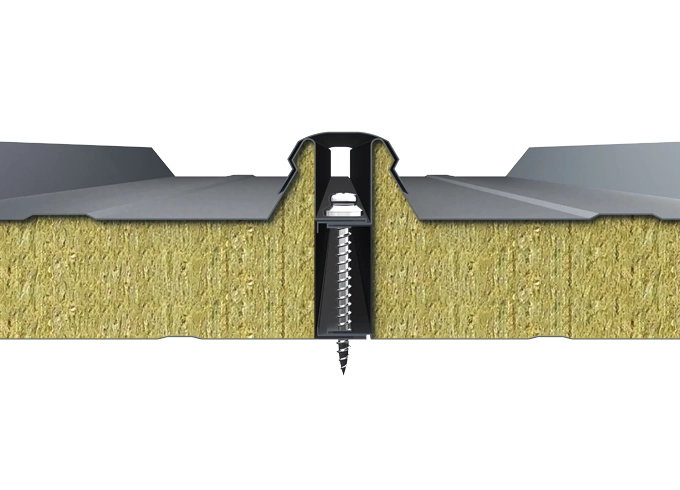

| HXY-FD-R-CapS950 | ||||||
 | ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 50-150 | 950 | 240 | 35 | ROCK/XPS GLASS | Steel /G250-350 Outer：0.5-0.6 Inner：0.4-0.6 | +250 +50 |

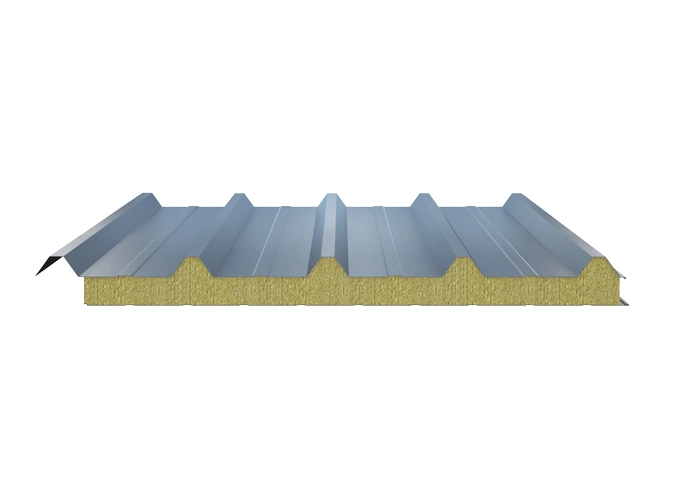

| HXY-FD-R-LapS950T5 | ||||||
 | ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 50-150 | 950 | 237.5 | 35 | XPS/EPS | Steel /G250-350 Outer：0.5-0.6 Inner：0.4-0.6 | +250 +50 |

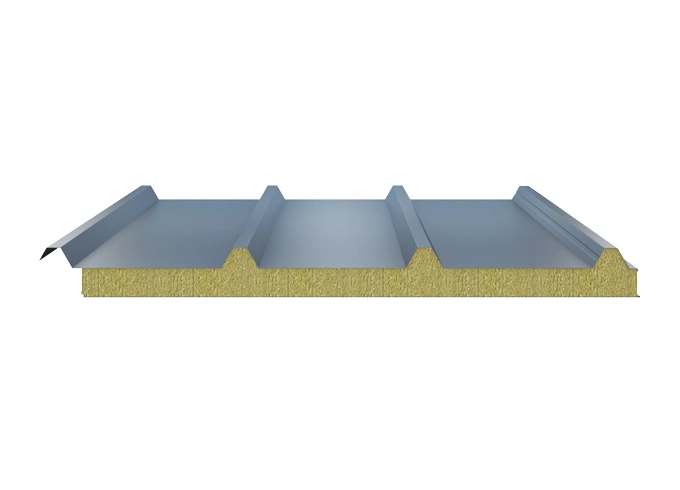

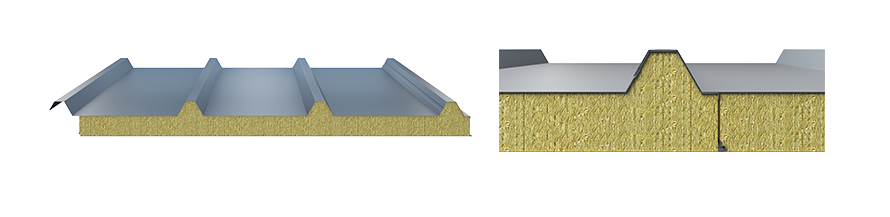

| HXY-FD-R-LapS950T4 | ||||||
 | ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 50-150 | 950 | 315 | 35 | ROCK/XPS GLASS | Steel /G250-350 Outer：0.5-0.6 Inner：0.4-0.6 | +250 +50 |
Core material made of rock wool -120K, with a thermal conductivity of 0.040. The overall weight is approximately 15-30 kg/m², ensuring effective thermal performance with minimal weight.

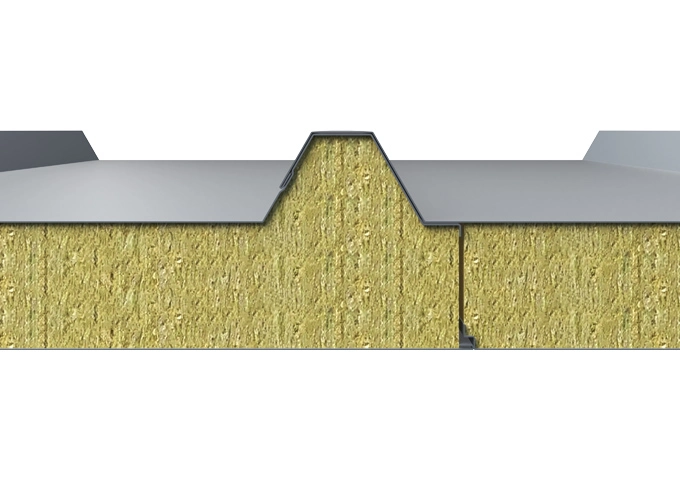

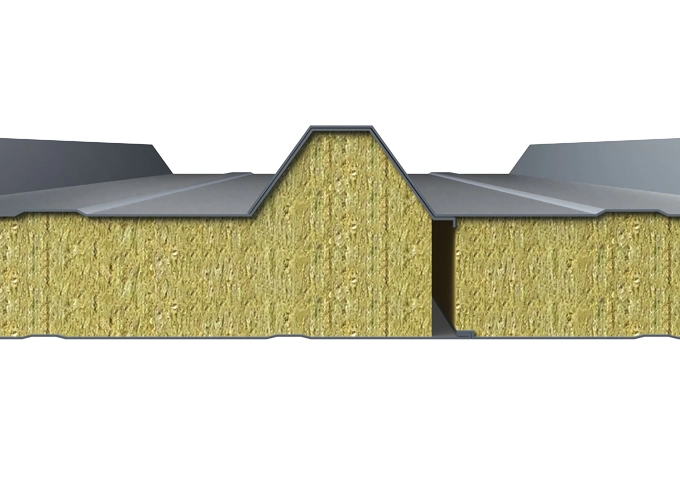

The panels feature a lap joint connection with an integrated air cavity waterproof structure, allowing for 50% faster installation compared to similar roofing systems.
Available in various coatings such as PE, SMP, HDP, or PVDF, and can be paired with AZM coating for a 30+ year warranty, offering flexibility to match any building style.
The multi-corrugated design enhances the panel’s resistance, reducing steel usage in purlin design.
100% factory pre-fabricated, contributing to energy savings and carbon reduction in construction.
