Metal Surface Insulated Sandwich Panel
Designed with a metal exterior and high-performance insulating core, this panel offers superior thermal insulation, soundproofing, and energy efficiency. It’s ideal for buildings where energy conservation and comfort are top priorities, ensuring long-term durability and reduced environmental impact.

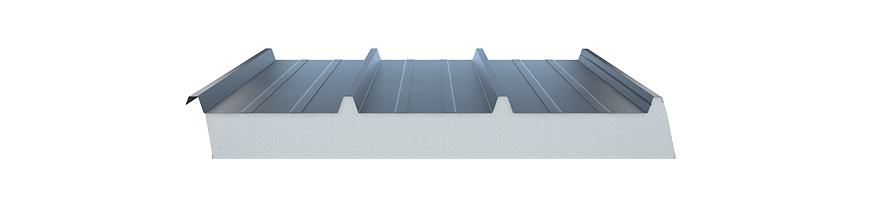

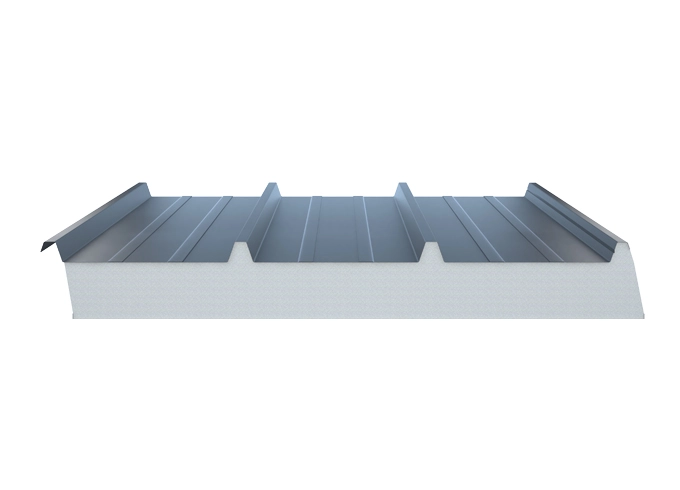

| HXY-FD-R-LapSs36 | ||||||
 | ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 30/40/50/ 60/75/80/ 100/125 | 1000 | 333.32 | 36 | PU PU+GLASS PU+ROCK | Steel /G250-350 Outer：0.5-0.8 Inner：0.4-0.6 | +200 +70 |

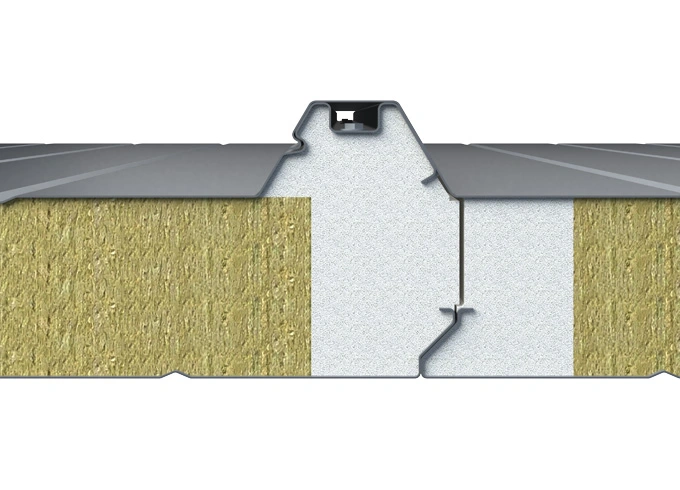

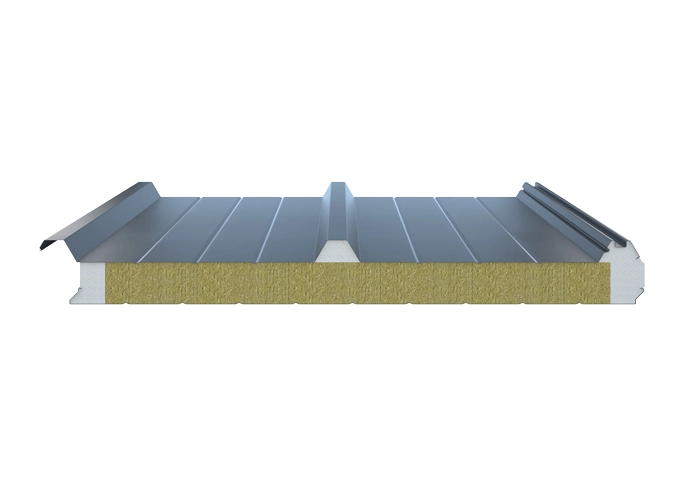

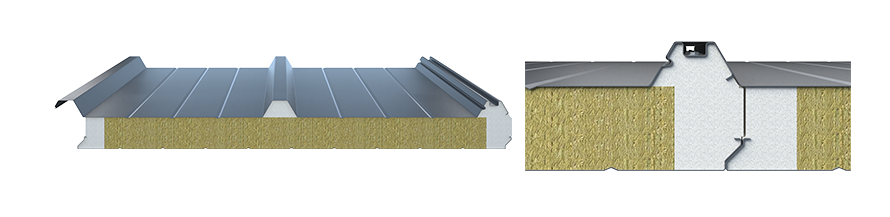

| HXY-FD-R-CapHT | ||||||
 | ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 50/55/75/ 80/85/100/ 120/150 | 1000 | 500 | 39 | PU PU+GLASS PU+ROCK | Steel /G250-350 Outer：0.5-0.8 Inner：0.4-0.6 | +200 +85 |

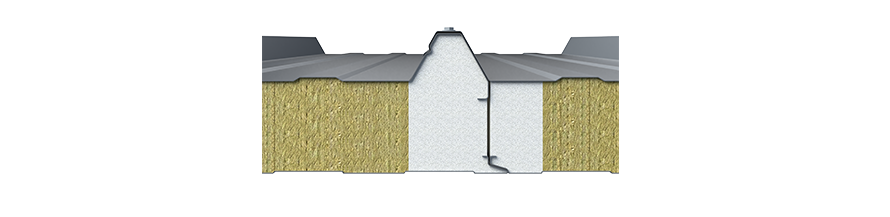

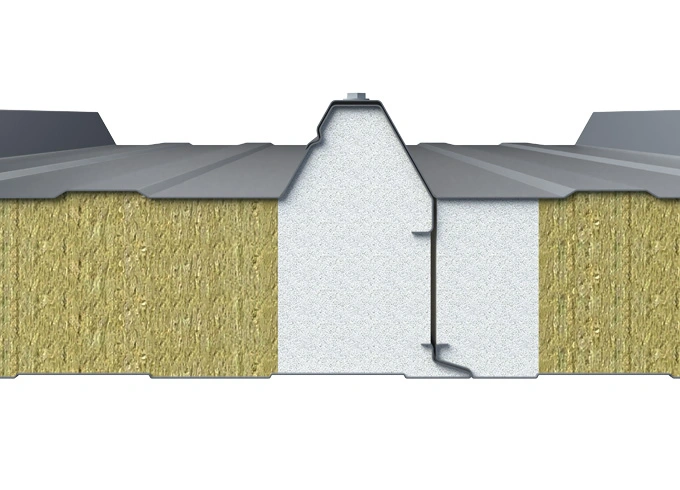

| HXY-FD-R-LapSv40 | ||||||
 | ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 50 | 950 | 317-316-317 | 40 | PU PU+GLASS PU+ROCK | Steel /G250-350 Outer：0.5-0.8 Inner：0.4-0.6 | +200 +50 |

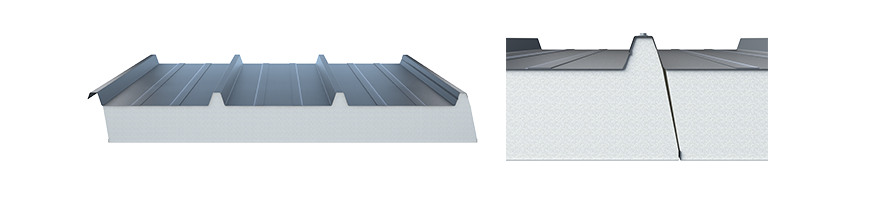

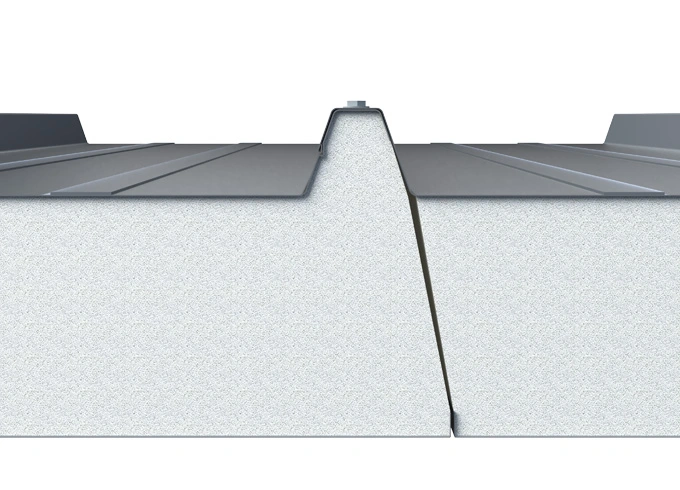

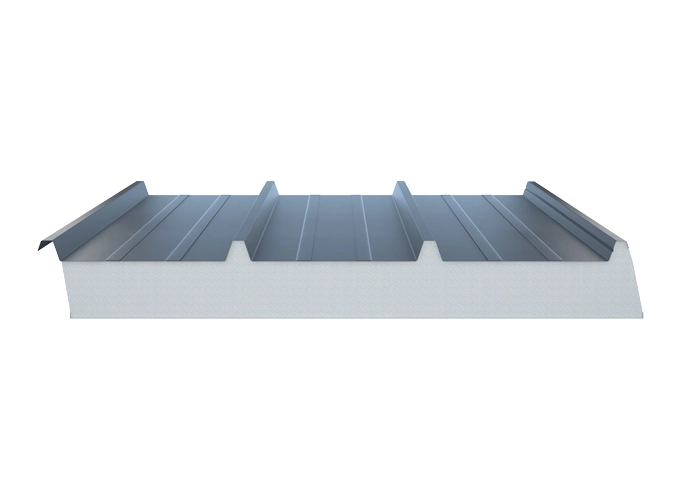

| HXY-FD-R-LapSoft | ||||||
 | ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 20/40/ 50/60/ 75/100 | 1000 | 333.32 | 36 | PU | Steel plate + Aluminum foil Outter: 0.5-0.8 G250-350 | +200 |

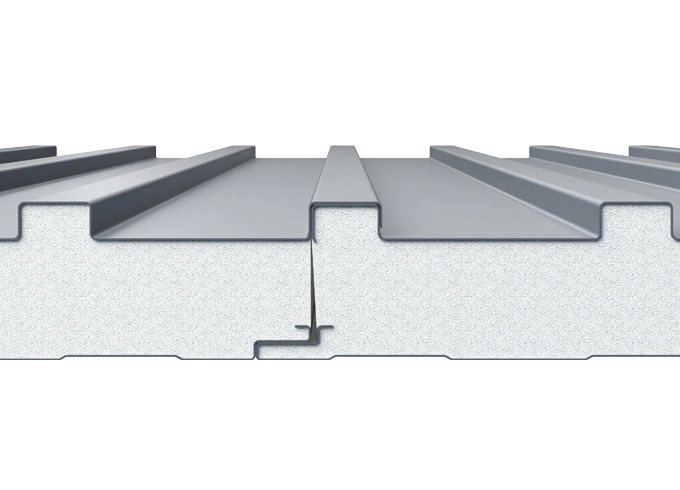

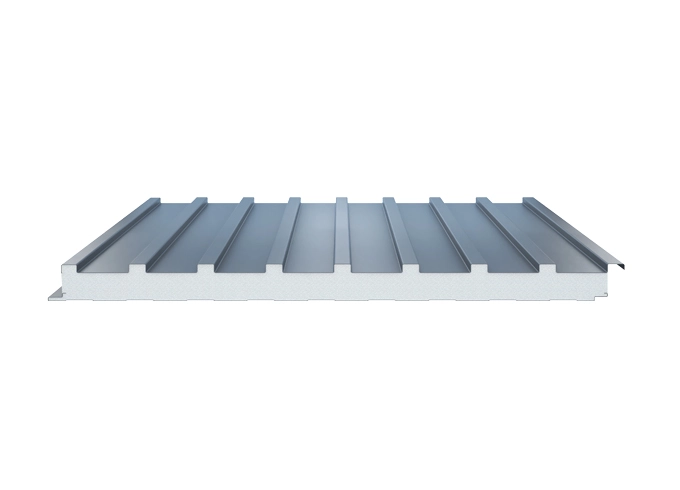

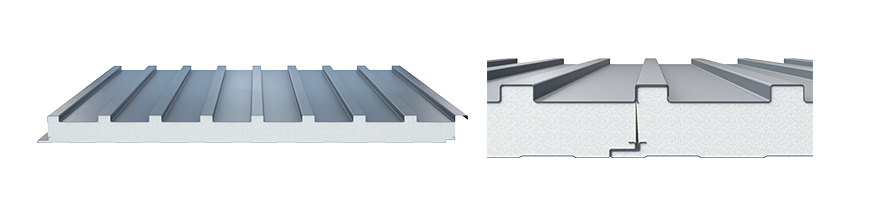

| HXY-FD-R-LapGW | ||||||
 | ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 30/50/ 80 | 950 | 118.75 | 15 | PU | Aluminum plate Outter: 0.3-1.0 Inner: 0.3-1.0 | +200 +50 |
Uses materials like PU-40K and Rock Wool-120K with thermal conductivity of 0.020-0.040, and a product weight of 15-30kg/m².
Roof panels use overlap connections with air-chamber waterproof design, improving construction efficiency by 50%.
Inner and outer color-coated steel plates with various coatings (PE/SMP/HDP/PVDF), paired with AZM coating for over 30 years of warranty.
Multi-wave corrugation increases panel strength, reduces steel usage, and is 100% pre-fabricated, supporting low-carbon energy-saving goals.
Welcome to contact us for anything you want to know.
