The Aluminum-Magnesium-Manganese standing seam roofing panel is made of aluminum-magnesium-manganese alloy, offering excellent corrosion resistance and strength. It is suitable for various building roofs, providing superior waterproofing, weather resistance, and long-lasting durability.

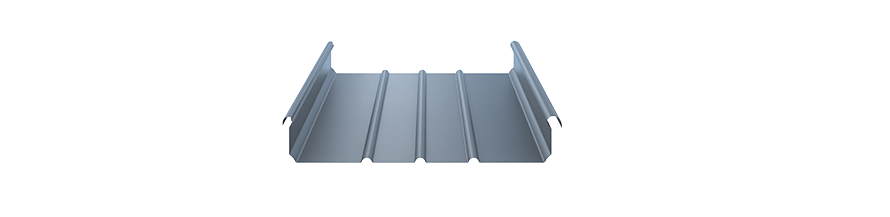

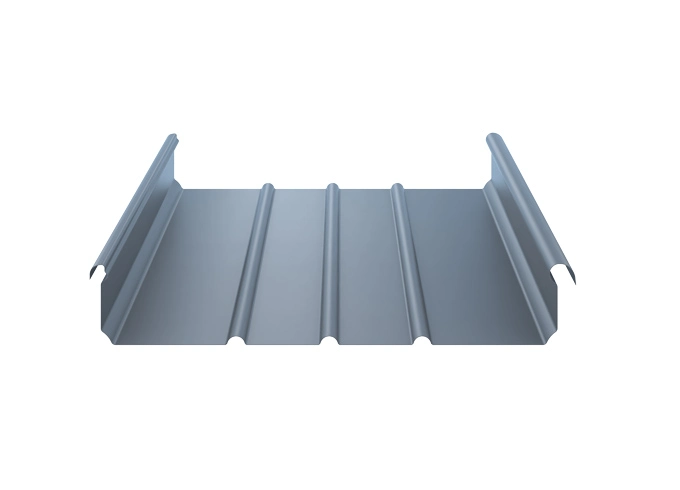

| Model | YX65-300/328/400/425/500 |
| Photo |  |
| Thickness | 0.7-1.2（Al-Mg-Mn） 0.5-1.0（Steel plate） |
| Strength | Steel-G250-G350 Al:3004/H44-H46 |
| Width | 100-600 |
| Characteristics | / |

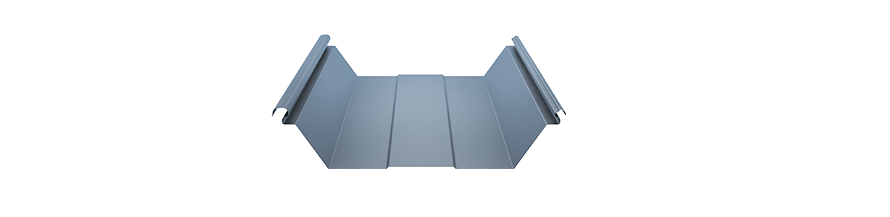

| Model | YX92-430 |
| Photo |  |
| Thickness | 0.4-0.8 |
| Strength | G250-G350 |
| Width | 600 |
| Characteristics | The male and female interlocks on both sides of the roof panel, combined with the fixed support, ensure high strength and prevent displacement from temperature changes, allowing unlimited panel length. |

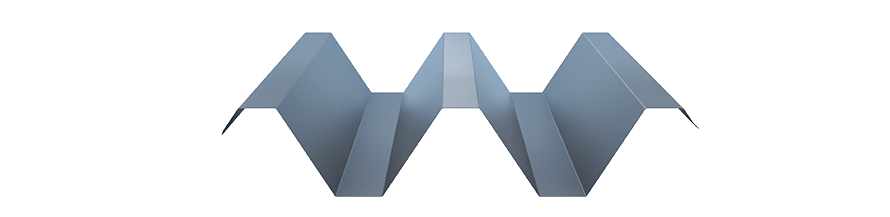

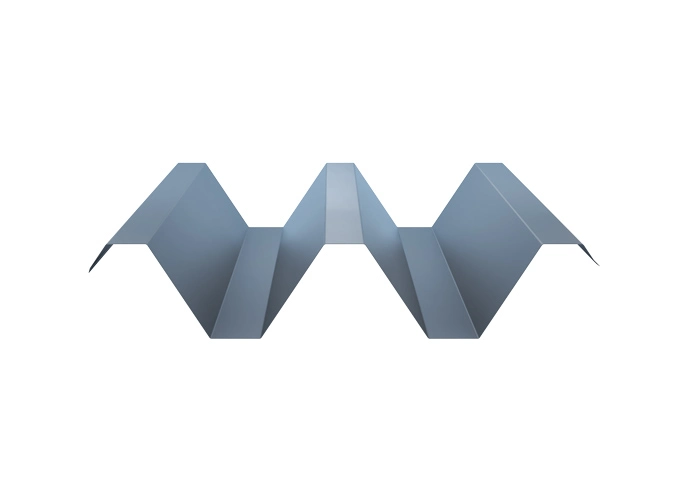

| Model | YX130-300-600 |
| Photo |  |
| Thickness | 0.4-0.8 |
| Strength | G250-G350 |
| Width | 1000 |
| Characteristics | Extra high wave height design, high load-bearing capacity, and high strength. |

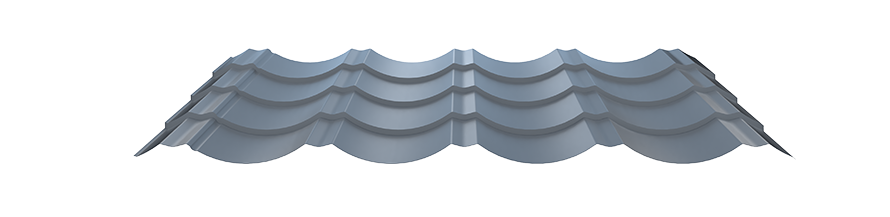

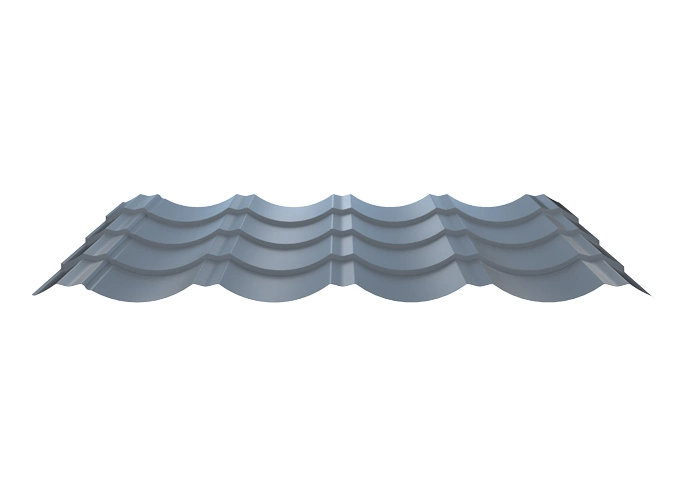

| Model | YX28-207-828 |
| Photo |  |
| Thickness | / |
| Strength | / |
| Width | / |
| Characteristics | Glazed tile-style color steel panels are suitable for roofing in homes, schools, temples, clubs, and nursing homes. With a selection of colors, they offer a traditional tile look while being lightweight, reducing structural load, and simplifying construction. |
High-precision, fully automated roll forming process with no damage. On-site and high-altitude forming options available.
360° locking edge design, with the ability to form various curved shapes for architectural flexibility.
Multiple models of sliding brackets effectively release temperature-induced deformation, preventing thermal stress damage to the roof.
65mm high ribbed panel design for high load-bearing capacity, combined with drainage slope for effective roof drainage.
