Metal Surface Photovoltaic Roofing Sandwich Panel
Combining a robust metal surface with a photovoltaic (solar) layer, this panel not only provides excellent thermal insulation but also integrates solar power generation, making it a sustainable choice for energy-efficient roofing solutions. It’s perfect for industrial and commercial buildings looking to reduce energy costs while contributing to a greener environment.

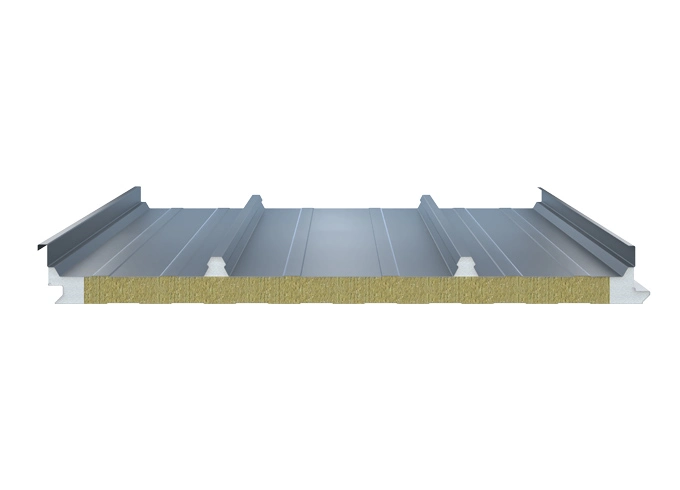

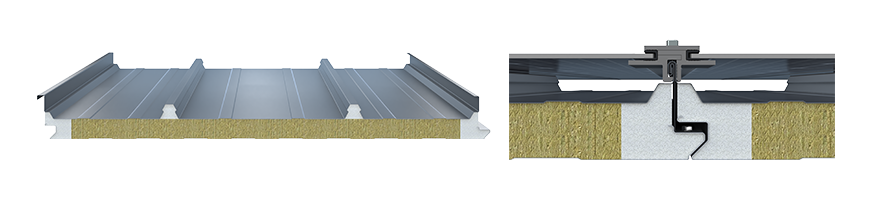

| HXY-FD-R-360HN II | ||||||
| ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 50/75 100/120 | 1060 | 305-450-305 | 36 | PU+GLASS PU+ROCK | Steel /G250-350 Outer：0.5-0.8 Inner：0.4-0.6 | +250 +200 |

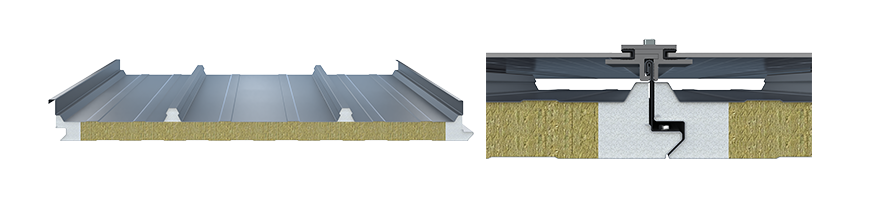

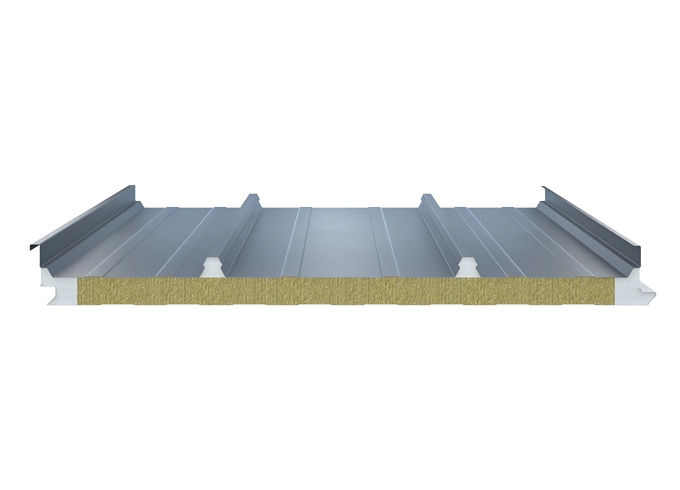

| HXY-FD-R-360HN | ||||||
| ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 50/75/ 100/120 | 1000 | 275-450-275 | 36 | PU+GLASS PU+ROCK | Steel /G250-350 Outer：0.5-0.8 Inner：0.4-0.6 | +200 +130 |

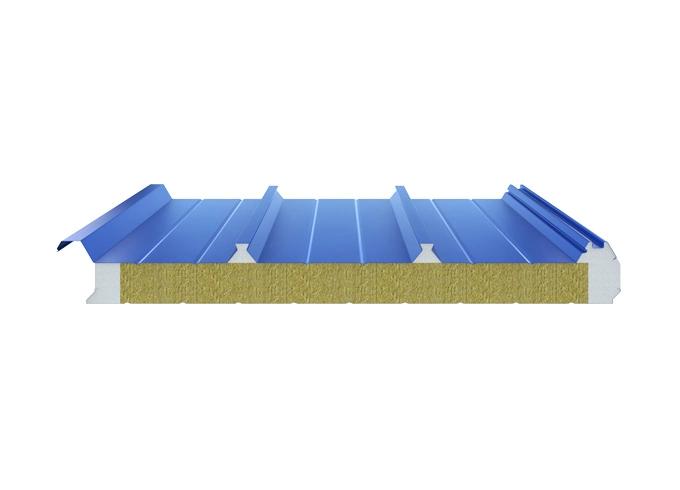

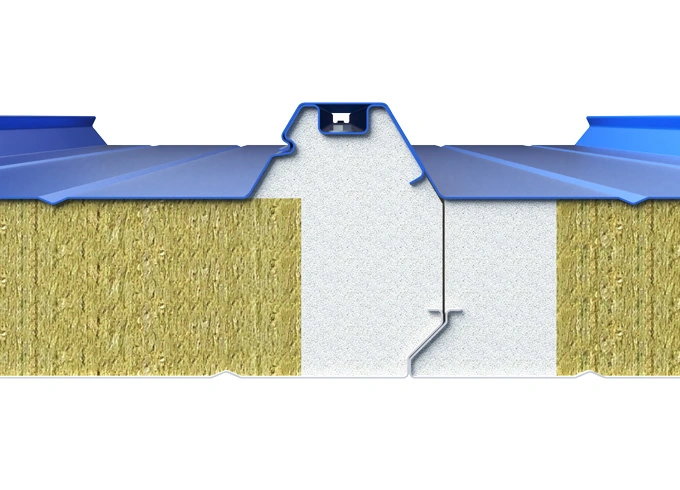

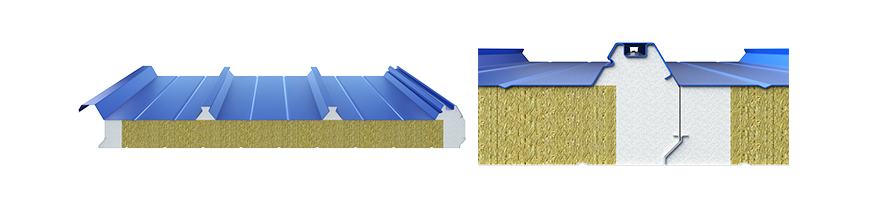

| HXY-FD-R-CapHN | ||||||
 | ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 50/80/ 100/120 | 1000 | 333-334-333 | 35 | PU+GLASS PU+ROCK | Steel /G250-350 Outer：0.5-0.7 Inner：0.4-0.6 | +250 +85 |
Uses lightweight thermal insulation materials such as PU-40K and Rock Wool-120K, with thermal conductivity of 0.020-0.040 and a product weight of 15-30kg/m².
Roof panels feature a 360° locking seam connection, with pre-fabricated adhesive at overlap joints. Construction is fast and precise, improving efficiency by 50% compared to similar roof panels.
Inner and outer color-coated steel plates are selected based on environmental needs, with coatings like PE/SMP/HDP/PVDF. Paired with AZM coating for over 30 years of warranty.
Four-wave corrugation enhances panel strength and reduces the amount of steel required for purlins. 100% pre-fabricated, contributing to low-carbon energy-saving goals.

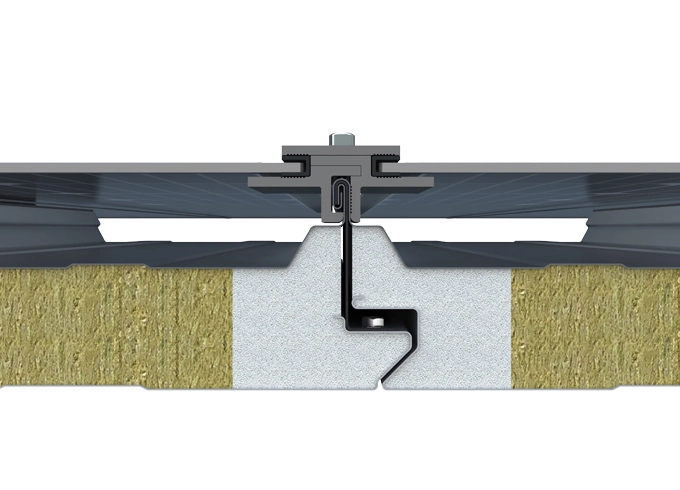

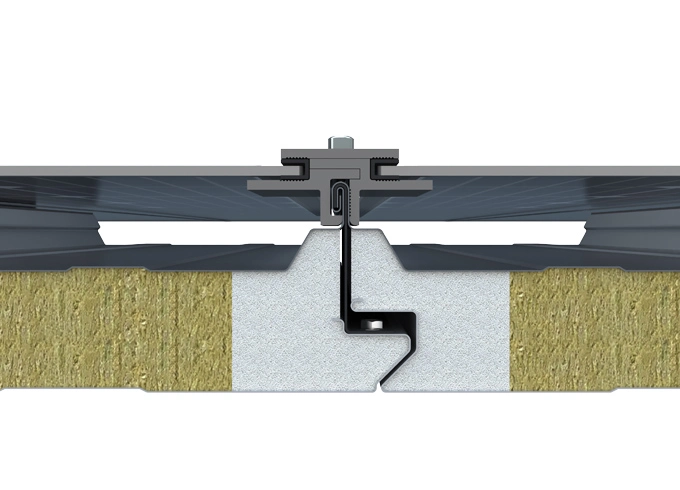

Necked mushroom-head wave peak design, reserved for non-penetrating photovoltaic fixture connections.
