Precision Engineered for Large-Scale Façades
Stress-free sheet metal panels, flatness ≤0.5mm. Hot-press bonded and ideal for large-module public building curtain walls.
| Product | TAX-T Through-wall Curtain Panel | TAX-T Non-through-wall Curtain Panel |

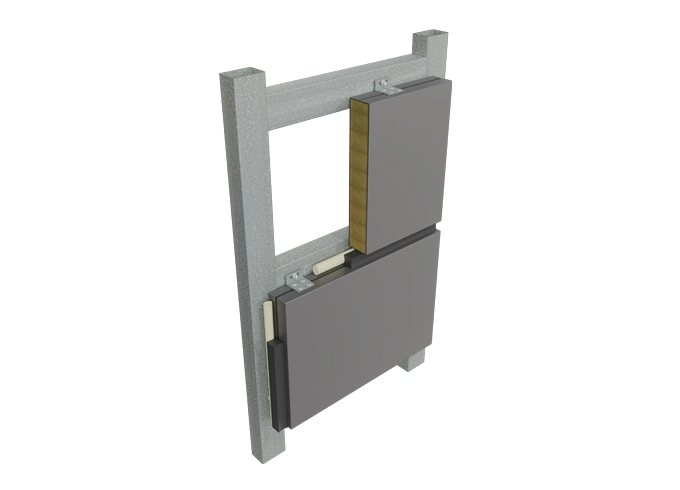

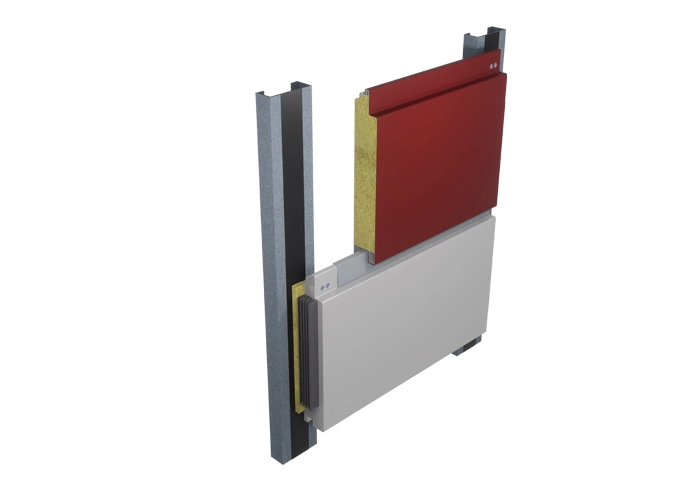

| Product Picture |  |  |

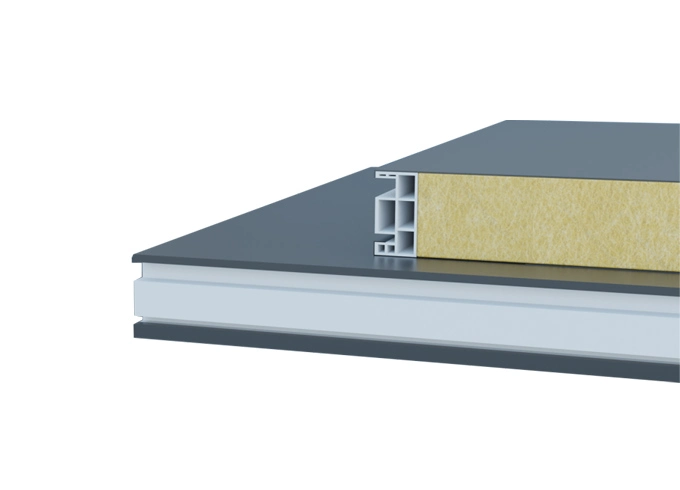

| Structure | Metal Panel + Hydrophobic Rock Wool + Metal Inner Plate | Metal Panel + Hydrophobic Rock Wool + Metal Inner Plate |
| Specifications | Thickness: 50/80/100 | Thickness: 50/80/100 |
| Width: 200–1600 | Width: 200–1600 | |
| Length: ≤6000 | Length: ≤6000 | |

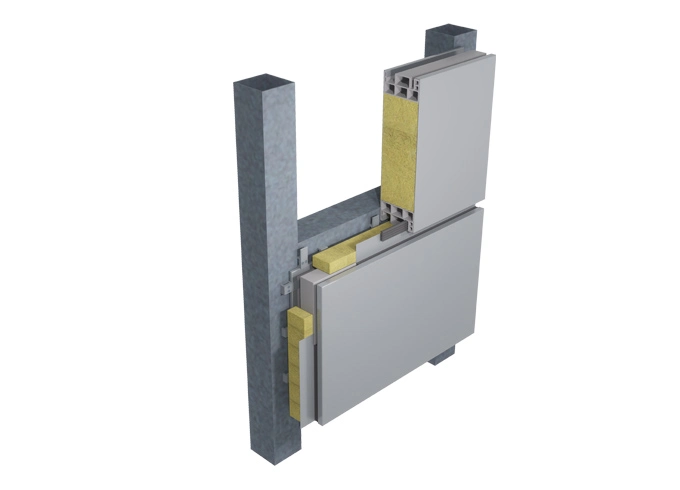

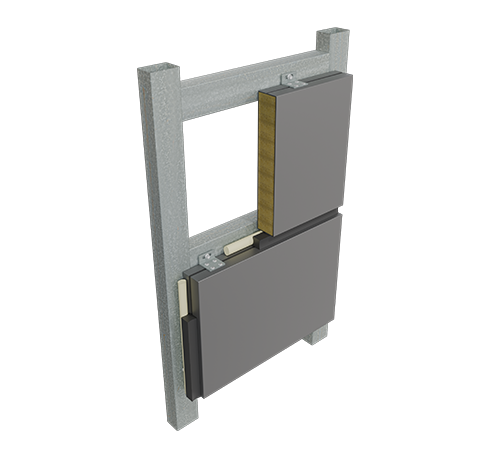

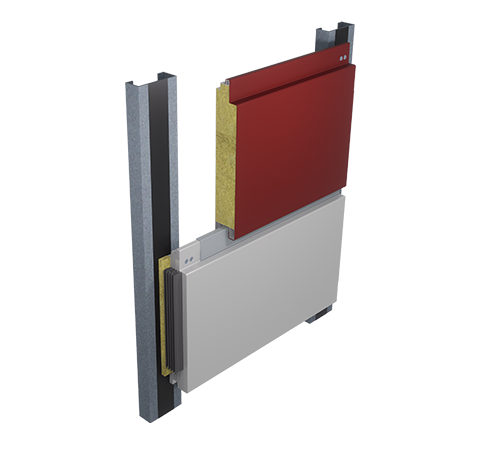

| Features | Tongue-and-groove interlock + Self-tapping screw mechanical fixation | Tongue-and-groove interlock mechanical fixation + Clip fixation |
| Joint width: 20mm, sealed with EPDM gasket at seams | Joint width: 3mm/16mm, sealed with EPDM gasket at seams |
Unit:mm
